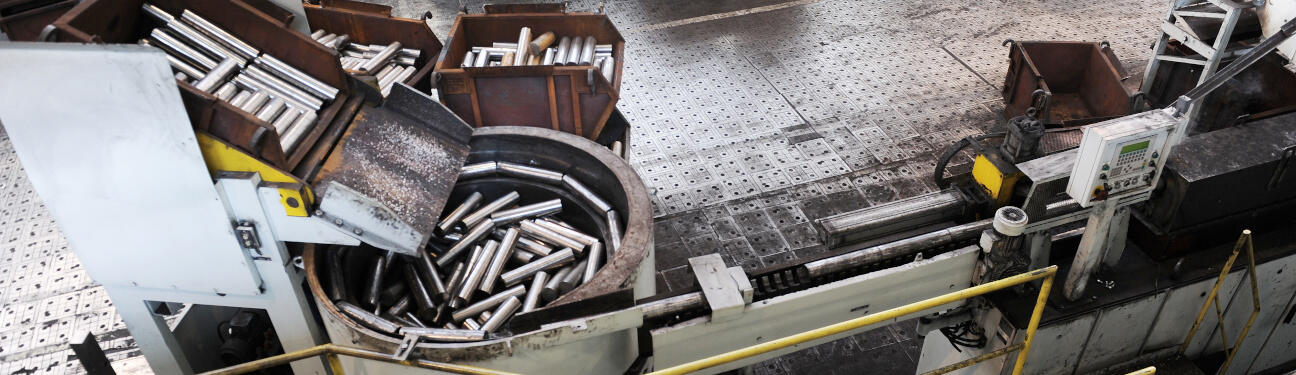

The VP 1601 Bin Tipper is designed from the transfer of billets or other pieces from a pallet bin. The weight of a single piece cannot exceed 5kg/pc. Using a forklift or pallet jack, the operator places the pallet bin with billets into the bin unloader recieving frame. Pushing a button activates the rotation of the bin, causing the billets to fall out.
| Dimensions W x D x H | Bin [mm] | 600 x 800 x 600 |
| Bin Tipper [mm] | 1810 x 1330 x 2088 | |
| Maximum Weight Load (including pallet) [kg] | 1600 | |
| Maximum Piece Weight [g] | 5 | |
| Bin Tipper Overall Weight [kg] | 970 | |
